Split label text line in two

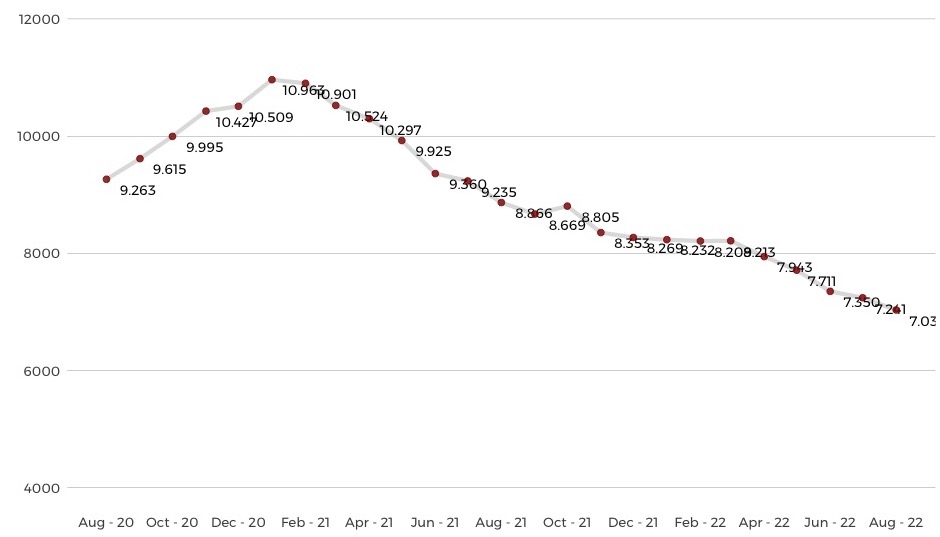

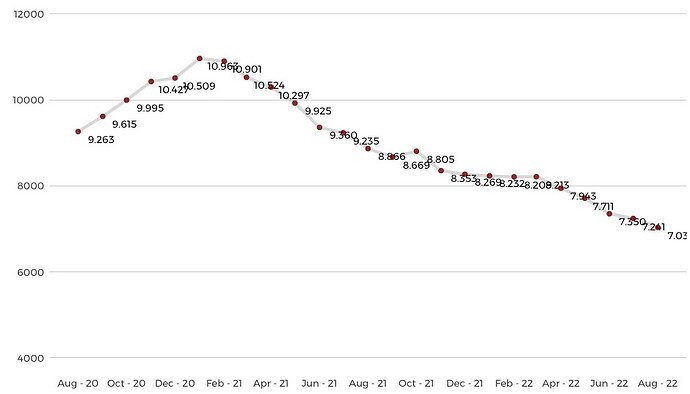

I am trying to "split" the text of the label line in two so one label appears below the point and the other above, but I am not able to do it. Is it possible to do it with geom_text?

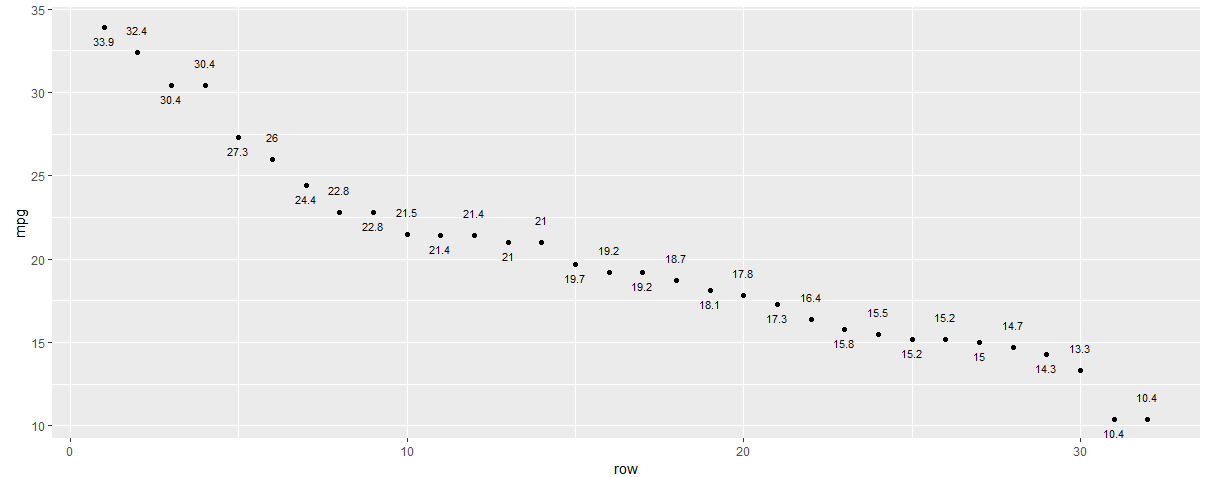

Hi @jynusmac. Below is one approach, which creates a variable in the data (adjust) that is passed to the vjust argument in geom_text().


# sample data
df = mtcars |>
  arrange(desc(mpg)) |>
  mutate(row = row_number()) |>
  mutate(adjust = ifelse(row_number() %% 2 == 1, 2, -2))

ggplot(df, aes(x = row, y = mpg)) +
  geom_point() +
  geom_text(aes(x = row, y = mpg, label = mpg, vjust = adjust))

Created on 2023-12-06 with reprex v2.0.2
