First, I built a custom grid:
# define pacific grid
my_grid <- data.frame(
row = c(5, 6, 6, 3, 2, 3, 2, 1, 6, 3, 6, 6, 4, 7, 3, 4, 4, 6, 4, 5, 5, 5),
col = c(6, 7, 4, 2, 2, 4, 3, 2, 3, 3, 6, 8, 2, 9, 1, 3, 5, 5, 4, 3, 4, 5),
code = c("AS", "CK", "FJ", "FM", "GU", "KI", "MH", "MP", "NC", "NR", "NU", "PF", "PG", "PN", "PW", "SB", "TK", "TO", "TV", "VU", "WF", "WS"),
name = c("American Samoa", "Cook Islands", "Fiji", "Micronesia (Federated States of)", "Guam", "Kiribati", "Marshall Islands", "Northern Mariana Islands", "New Caledonia", "Nauru", "Niue", "French Polynesia", "Papua New Guinea", "Pitcaim Island", "Palau", "Solomon Islands", "Tokelau", "Tonga", "Tuvalu", "Vanuatu", "Wallis and Futuna", "Samoa"),
stringsAsFactors = FALSE
)

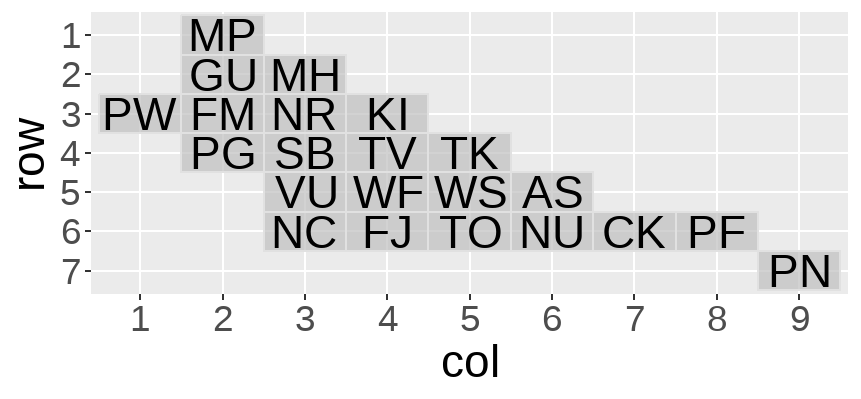

geofacet::grid_preview(pacific_grid)
It worked:
and then I used facet_wrap to make the plot:
# plot
ggplot(data = plot_data) +
geom_arc_bar(
mapping = aes(x0 = 0, y0 = 0, r0 = 2, r = 4, start = 0, end = end),
fill = fill_col,
colour = NA
) +
geom_arc_bar(
mapping = aes(x0 = 0, y0 = 0, r0 = 2, r = 4, start = 0, end = end1),
fill = end1_col,
colour = NA
) +
geom_arc_bar(
mapping = aes(x0 = 0, y0 = 0, r0 = 2, r = 4, start = 0, end = end2),
fill = end2_col,
colour = NA
) +
geom_text(
mapping = aes(x = 0, y = 0, colour = text_col, label = paste0(renewdata, "%"))
) +
facet_wrap(~name)+

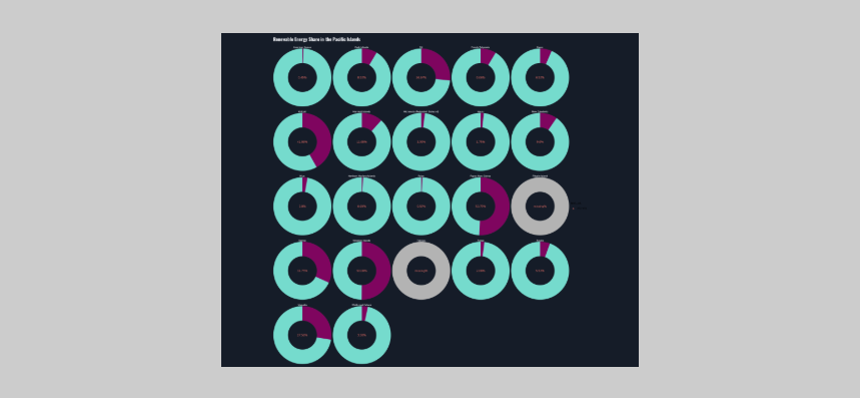

it worked too:
but i used facet_geo instead, the code like this:
ggplot(data = plot_data) +
geom_arc_bar(
mapping = aes(x0 = 0, y0 = 0, r0 = 2, r = 4, start = 0, end = end),
fill = fill_col,
colour = NA
) +
geom_arc_bar(
mapping = aes(x0 = 0, y0 = 0, r0 = 2, r = 4, start = 0, end = end1),
fill = end1_col,
colour = NA
) +
geom_arc_bar(
mapping = aes(x0 = 0, y0 = 0, r0 = 2, r = 4, start = 0, end = end2),
fill = end2_col,
colour = NA
) +
geom_text(
mapping = aes(x = 0, y = 0, colour = text_col, label = paste0(renewdata, "%"))
) +
geofacet::facet_geo(~ name, grid = pacific_grid) +

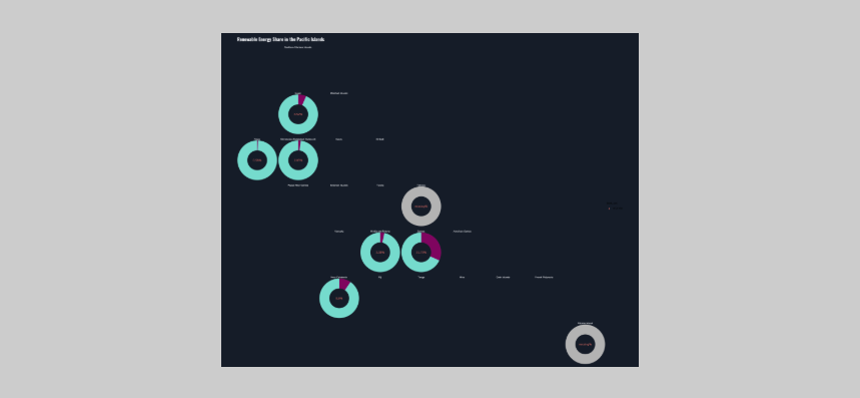

it didn't happen as expected, some facet missing without warnings:
I have checked the difference of the plot data and my grid using setdiff, it said no
setdiff(pacific_grid$name, plot_data$name)
character(0)
Anybody know that? why? THX
