Ben07
June 29, 2021, 6:20pm
1
Hello,
My file is composed of several females on which we followed the maturation of the eggs by ultrasound. We therefore have several dates with the size of the eggs for 36 females.
Basically this is what the table looks like
Date Female Egg size
05/01/2020 a 0.2
05/01/2020 b 0.25
06/02/2020 a 0.3
06/02/2020 b 0.36
07/15/2020 a 0.52
07/17/2020 b 0.5

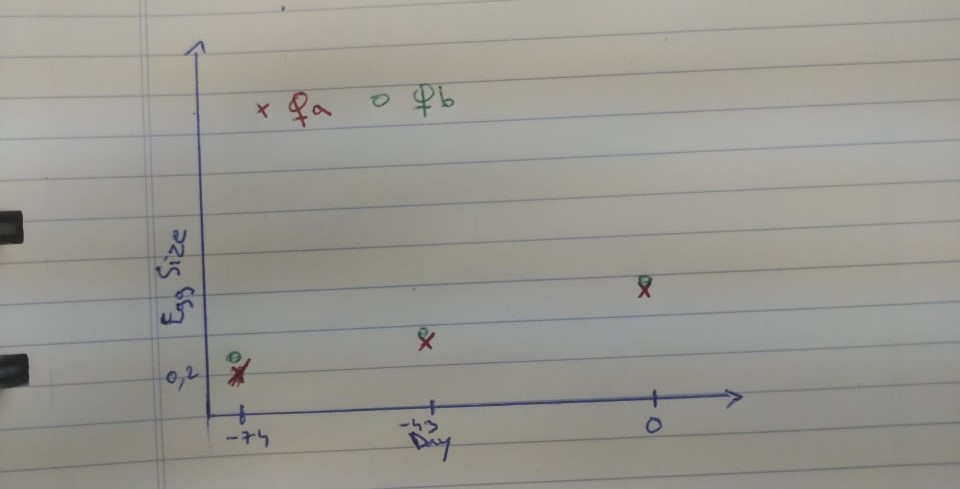

I would like to make a graph by assigning the egg-laying date for each female as day 0 and invert the dates according to the days of maturation.
Approximate example: 07/15 = D0, 06/02 = -D43 and 05/01 = -D74
I have this for 36 femelles with ramdom date
Thanks a lot
Ben07
June 29, 2021, 6:23pm
2

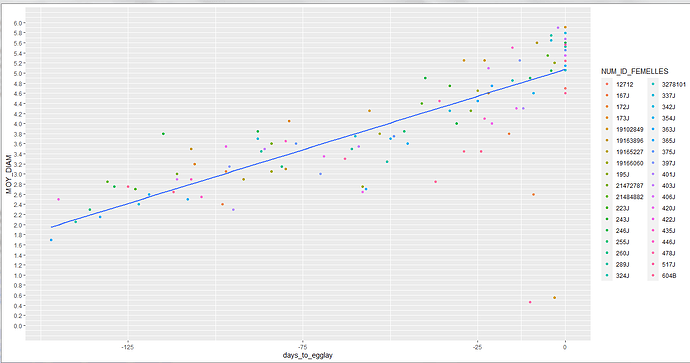

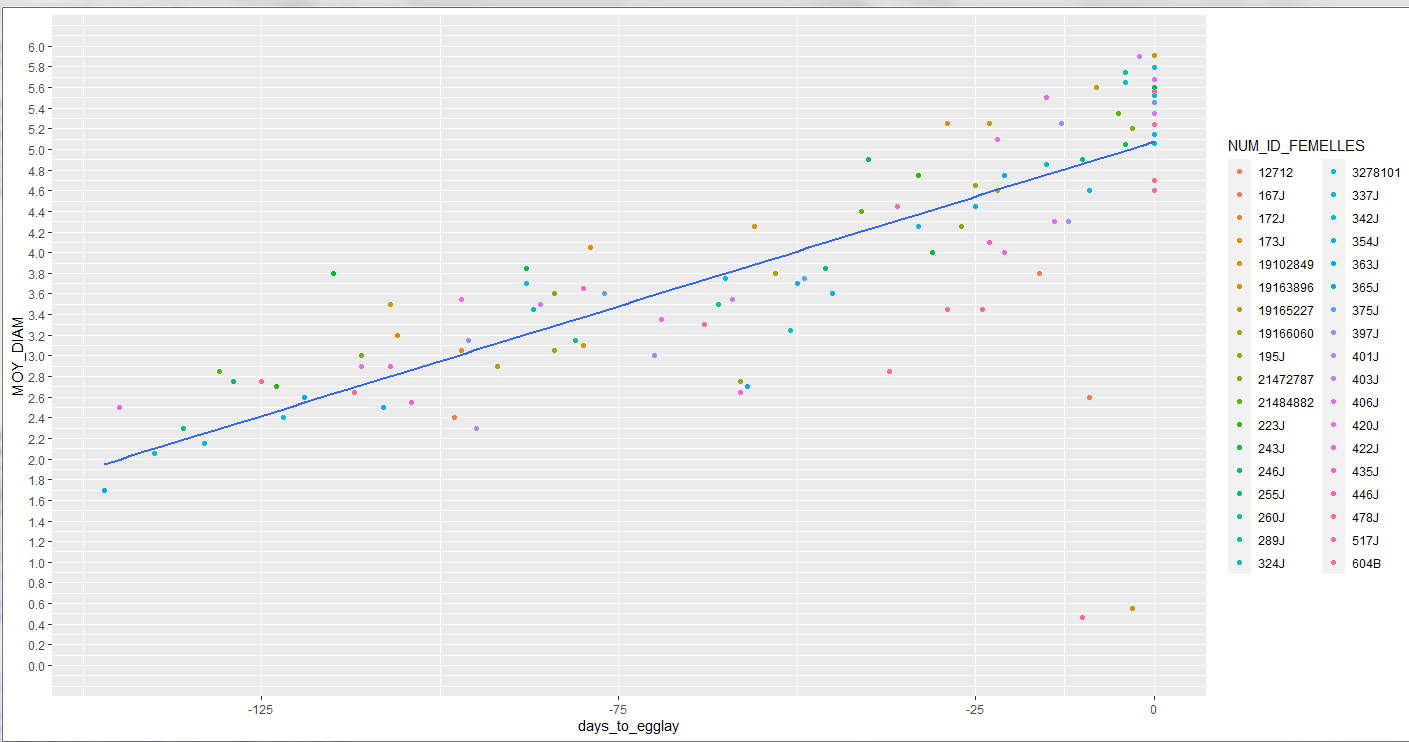

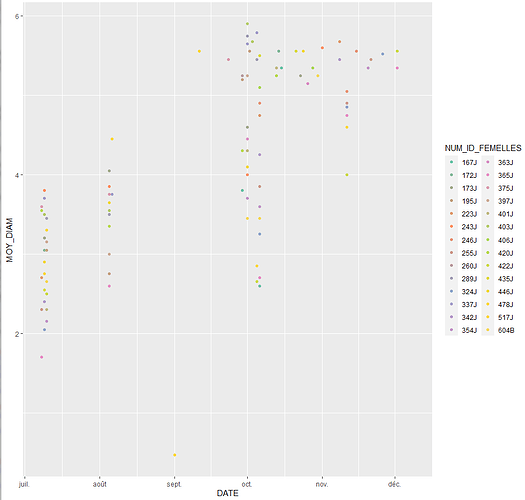

My graph is like that for the moment
Have a great day
Hi @Ben07 ,
Welcome to the RStudio Community Forum.
Here's a bit of dplyr
followed by a bit of ggplot
to get your graph:
suppressPackageStartupMessages(library(tidyverse))
df <- read.table(header=TRUE, text="
Date Female Egg_size
05/01/2020 a 0.2
05/01/2020 b 0.25
06/02/2020 a 0.3
06/02/2020 b 0.36
07/15/2020 a 0.52
07/17/2020 b 0.5")
df
#> Date Female Egg_size
#> 1 05/01/2020 a 0.20
#> 2 05/01/2020 b 0.25
#> 3 06/02/2020 a 0.30
#> 4 06/02/2020 b 0.36
#> 5 07/15/2020 a 0.52
#> 6 07/17/2020 b 0.50
df %>%
mutate(Date = as.Date(Date, format="%m/%d/%Y")) %>%
arrange(Female,Date) %>%
group_by(Female) %>%
mutate(egglay = max(Date)) %>%
mutate(days_to_egglay = Date - egglay) -> df
df
#> # A tibble: 6 x 5
#> # Groups: Female [2]
#> Date Female Egg_size egglay days_to_egglay
#> <date> <chr> <dbl> <date> <drtn>
#> 1 2020-05-01 a 0.2 2020-07-15 -75 days
#> 2 2020-06-02 a 0.3 2020-07-15 -43 days
#> 3 2020-07-15 a 0.52 2020-07-15 0 days
#> 4 2020-05-01 b 0.25 2020-07-17 -77 days
#> 5 2020-06-02 b 0.36 2020-07-17 -45 days
#> 6 2020-07-17 b 0.5 2020-07-17 0 days

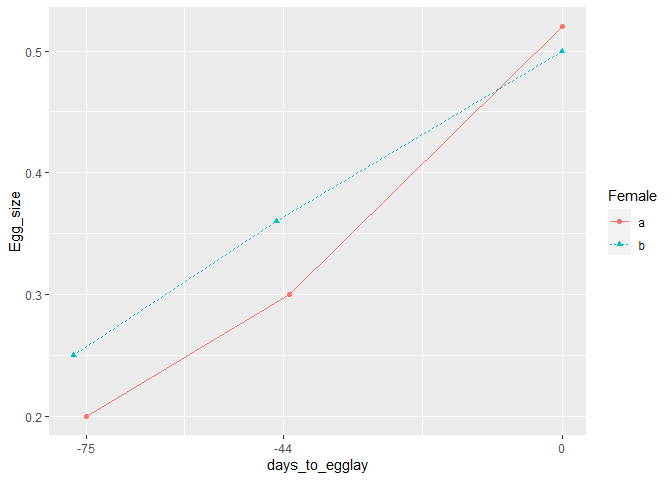

ggplot(df) +
aes(x=days_to_egglay, y=Egg_size, pch=Female, lty=Female, col=Female) +
geom_point() +
geom_line() +
scale_x_continuous(breaks=c(-75, -44, 0))
Created on 2021-07-01 by the reprex package (v2.0.0)
Ben07
July 1, 2021, 4:05pm
4
OOOOhhhhh great ! Thank you a lot !
I apply your code to my data frame and that's work !
Have a great day and thank you again
