Adding X Axis Bin Labels and Percents/Counts to Top of Bins

[Dan0o0o]

Hello all...working on a project here and my code is below....few questions..

How can I add labels to the X axis bins? Below each bin I'd like for them to say 0.0-1.0, 1.1-2.0, etc...

How can I add percents and total counts to the TOP of these bins on the histogram?

I'm not summing anything up on the Y axis. Is there a way to remove the Y axis counts? As you can see from my graph label below I don't want anything there but count is being added my default.

library(ggplot2)
library(dplyr)
library(base)
library(dplyr)
library(tidyverse)
WAR <- read.csv("WAR.csv")
View(WAR)
## Only Pitchers displayed in a DF
pitchers <- filter(WAR, Type == "Pitcher")
View(pitchers)
##2020 pitchers only
pitchers20 <- filter(pitchers, year == 2020)
View(pitchers20)
##2021 pitchers only
pitchers21 <- filter(pitchers, year == 2021)
View(pitchers21)
##Only Hitters displayed in a DF
hitters <- filter(WAR, Type == "Hitter")
##2020 hitters only
hitters20 <- filter(hitters, year == 2020)
##2021 hitters only
hitters21 <- filter(hitters, year == 2021)
##2020 all WAR
WAR20 <- filter (WAR, year ==2020)
#2021 all WAR
WAR21 <- filter( WAR, year == 2021)

#2021 WAR histogram with custom bins and scales
ggplot(WAR21, aes(x=WAR))+
  geom_histogram(fill='steelblue', col='black', bins=12)+
  labs(title = "2021 MLB fWAR Distribution, No PA/IP Minimums")+
  scale_x_continuous(breaks = seq(-2.,8.5, by = 1.00))+
  ylab ("NA dont want a Y axis")+
  xlab("fWAR")+
  theme(axis.title.y = element_text(color="#993333", size=13, face="bold"))+
  theme(axis.title.x = element_text(color="#993333", size=13, face="bold"))+
  theme(plot.title = element_text(color="Dark Red", size=14, face="bold.italic"))+
  theme(axis.text.x = element_text(color = "dark red", size = 9, face ="bold"))

##above how do I label them 0-1, 1-2, etc. on the X axis?```

[scottyd22]

Since WAR.csv was not shared, I substituted the mtcars dataset in the example below, preserving as much of your code as possible. My updates are marked with # update:

• Counts above the bars were added using a summary data set, mtcars_labels, within the geom_text() function
• The y axis label was removed using ylab("")
• Bin labels were added within scale_x_continuous via the labels argument. Note, this vector needs to be the same length as the breaks.
• y axis counts and ticks were removed within theme() with axis.text.y and axis.ticks.y

library(tidyverse)

mtcars_labels = mtcars %>%
  count(cyl)

ggplot(mtcars, aes(x=cyl))+
  geom_histogram(fill='steelblue', col='black', bins=3)+
  # update: adds counts above bars
  geom_text(data = mtcars_labels, aes(x = cyl, y = n, label = n), vjust = -0.8, size = 3) +
  labs(title = "2021 MLB fWAR Distribution, No PA/IP Minimums")+
  scale_x_continuous(breaks = seq(4, 8, 2),
                     # update: bin labels (same length as breaks)
                     labels = paste0('bin_', seq(1:3))
                     )+
  # update: removes y-axis label
  ylab ("")+
  xlab("fWAR")+
  # update: removes y-axis counts
  theme(axis.text.y = element_blank()) +
  # update: removes y-axis ticks
  theme(axis.ticks.y = element_blank()) +
  theme(axis.title.y = element_text(color="#993333", size=13, face="bold"))+
  theme(axis.title.x = element_text(color="#993333", size=13, face="bold"))+
  theme(plot.title = element_text(color="Dark Red", size=14, face="bold.italic"))+
  theme(axis.text.x = element_text(color = "dark red", size = 9, face ="bold"))

[Dan0o0o]

Thanks for this. Very helpful. I've made amendments and here is my code:

#Summary counts of the datasets
WAR21_labels = WAR21 %>%
  count(WAR)
ggplot(WAR21, aes(x=WAR))+
  geom_histogram(fill='steelblue', col='black', bins=12)+
  geom_text(data = WAR21_labels, aes(x = WAR, y = n, label = n), vjust = -0.8, size = 3) +
  labs(title = "2021 MLB fWAR Distribution, No PA/IP Minimums")+
  scale_x_continuous(breaks = seq(4, 8, 2),
                     # updating bin labels (same length as breaks)
                     labels = paste0('bin_', seq(1:3))
  )+
  ylab ("")+
  xlab("fWAR")+
  # updating to removes y-axis counts and ticks
  theme(axis.text.y = element_blank()) +
  theme(axis.ticks.y = element_blank()) +
  theme(axis.title.y = element_text(color="#993333", size=13, face="bold"))+
  theme(axis.title.x = element_text(color="#993333", size=13, face="bold"))+
  theme(plot.title = element_text(color="Dark Red", size=14, face="bold.italic"))+
  theme(axis.text.x = element_text(color = "dark red", size = 9, face ="bold"))

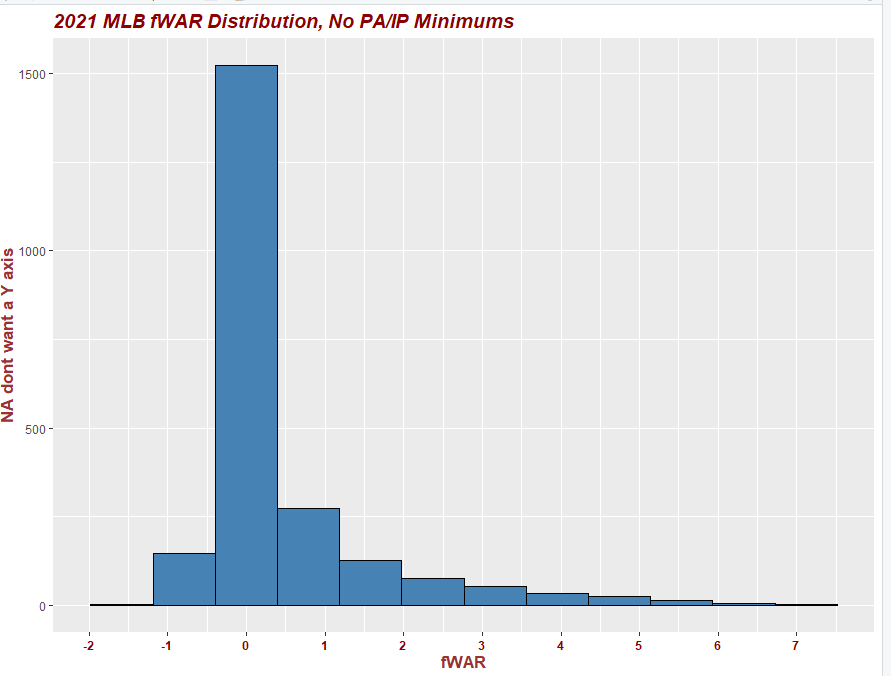

This is my resulting viz:

I've eliminated Y axis counts and ticks. How do I edit the bins? It's only showing two bins but I need 12 and to sum all those numbers in each bin instead of all the extra numbers.

I am confused when you changed scale_x_continuous breaks...I had this originally below denoting to start at -2.0 all the way up to 8.5 and separated by 1.00. Why did you change to 4,8, 2?

scale_x_continuous(breaks = seq(-2.,8.5, by = 1.00))+

[scottyd22]

Since WAR.csv was not shared, I used the mtcars data set and altered the ggplot code to fit this data (plot was of cyl, which only has options of 4/6/8, so that's why I chose seq(4,8,2) for breaks).

In your case, since you need 12 bins, try the following code. I changed the breaks to go to 9 to create a vector of length 12. Change the labels to be a vector of length 12 of your desired outputs ("bin_1" etc. is used for illustration). These lengths need to be in sync.

scale_x_continuous(breaks = seq(-2, 9, by = 1.00),
                   labels = paste0('bin_', seq(1:12))

As for WAR21_labels, since the length of your bins is 12, you will need to group by and aggregate in a way that produces the 12 values you want displayed above the bars.

[Dan0o0o]

Thanks,. That makes sense about the breaks and lengths needing to be in sync.
